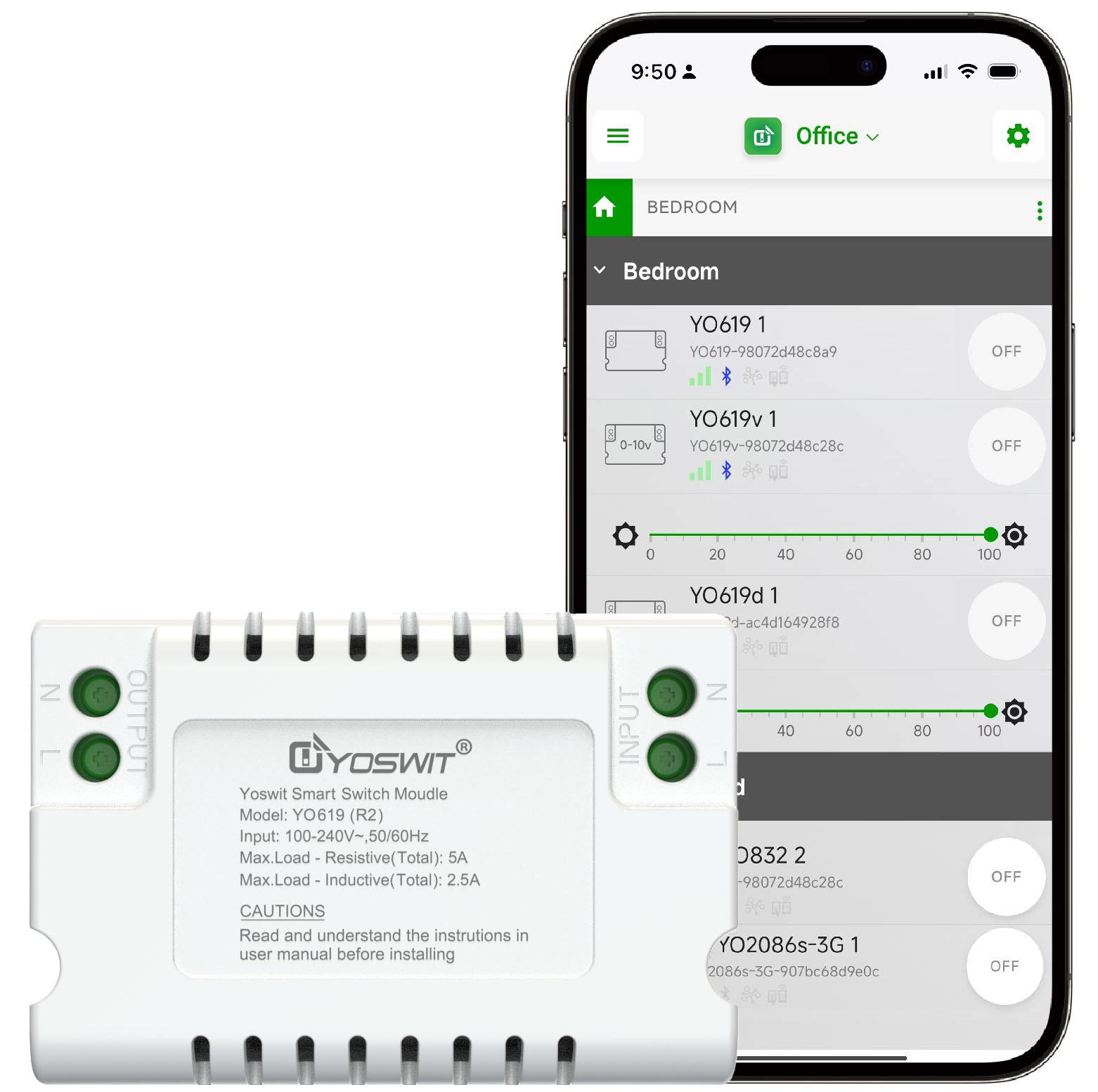

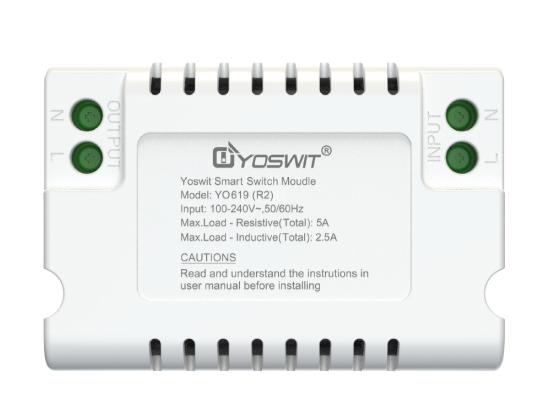

Smart Switch Module

Product Code: YO619 (R2)

Features:
  • No Switch Box Dependency
  • Built-in Timer for Automation
  • Proprietary Topology for Mesh-like Network
  • No Hub Required for Wireless Control
  • Connects to a Hub for Remote Control
  • Smart Speaker Integration
Smart Your Existing Lighting With Smart Switch Module

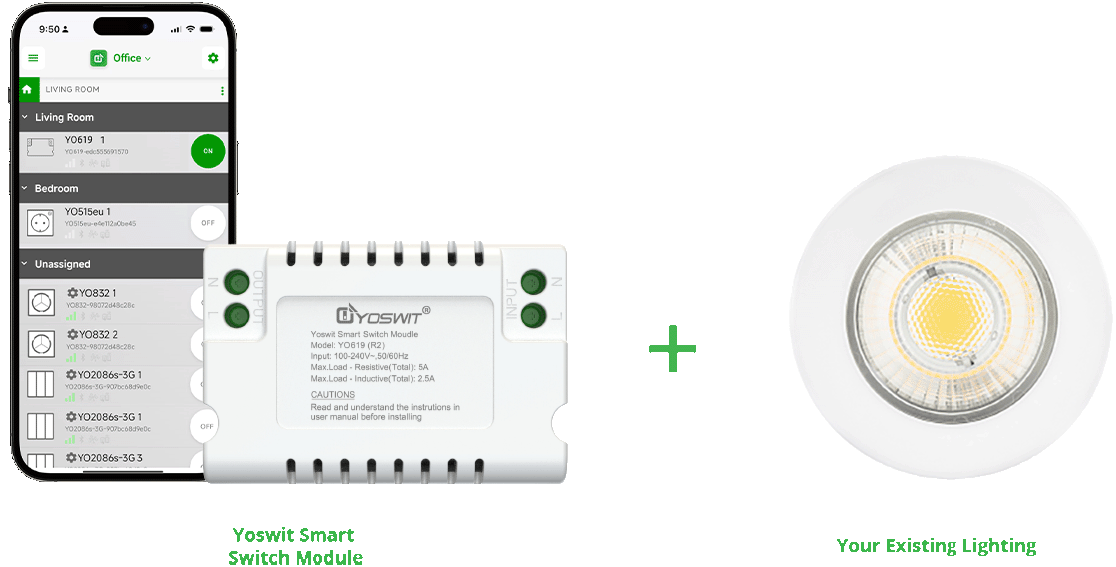

How Yoswit Smart Switch Module Works

/files/619-3-02.png

Features

Full Demo Video

Real Product Demo

Comparison

Yoswit Smart Switch Module
Yoswit Smart Switch Module
 Schneider
Schneider
(ULTI Ezinstall3)
Legrand
Legrand
(Arteor/Adorne/Radiant)
Leviton
Leviton
(Decora)
LUTRON
LUTRON
(Caseta)
No Hub / Router
No Setup
No Pairing
Smart Switch Module
Two Operation Mode
Built-In Timer
Technology Bluetooth Zigbee / RF

Yoswit Smart Switch

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • Smart Switch Module:
  • Two Operation Mode:
  • Built-In Timer:
  • Technology: Bluetooth

Schneider
Schneider
(ULTI Ezinstall3)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • Smart Switch Module:
  • Two Operation Mode:
  • Built-In Timer:
  • Technology:

Legrand
Legrand
(Arteor/Adorne/Radiant)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • Smart Switch Module:
  • Two Operation Mode:
  • Built-In Timer:
  • Technology: Zigbee / RF

Leviton
Leviton
(Decora)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • Smart Switch Module:
  • Two Operation Mode:
  • Built-In Timer:
  • Technology:

LUTRON
LUTRON
(Caseta)

  • No Hub / Router:
  • No Setup:
  • No Pairing:
  • Smart Switch Module:
  • Two Operation Mode:
  • Built-In Timer:
  • Technology:

Run Your Home from Your Phone

Mobile As Hub
Mobile As Hub
Voice Control
Voice Control
Mesh-like Network
Mesh-like Network
Remote Control
Remote Control
Room and Scenes
Away Detection
Away Detection
Schedule Timers
Schedule Timers
Password Protection
Password Protection
IFTTT
IFTTT
App Store
Android App
Read More

Bluetooth Version

We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please Click Here to get the growing list.

IOS Support

We support iOS 13.0 or later.

Android Support

We support Android 7 or later.

General
Product Name
Smart Switch Module
Model
YO619 (R2)
EAN / UPC
EAN: 0765756498197 / UPC: 765756498197
Revision
V1.0
Compliance
CE, FCC, RoHS
Manufacturer
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
Dimensions
Product Size
Mechanical
Storage Conditions
-20°C to 60°C
Operation
APP
Operating Temperature
-10°C to 50°C
Operating Humidity
0-90% RH, Non-Condensing
Electrical
Input Voltage
100-240V AC (50/60Hz)
Frequency
60/50Hz Auto Detected at Power-up
Resistive Load Current
Max. 10A
Inductive Load Current
Max. 5A
Standby Power
<0.1W
Wireless
Frequency
2.4GHz
Connection
BLE 4.2
Range
Open Area: >50m / Interior: 3-20m

WARNING !

warning
    To prevent severe shock or electrocution, always disconnect power at the service panel before beginning work. Only licensed electricians should carry out the installation.

Basic Installation

1

Disconnect the wires of your lighting devices.

2

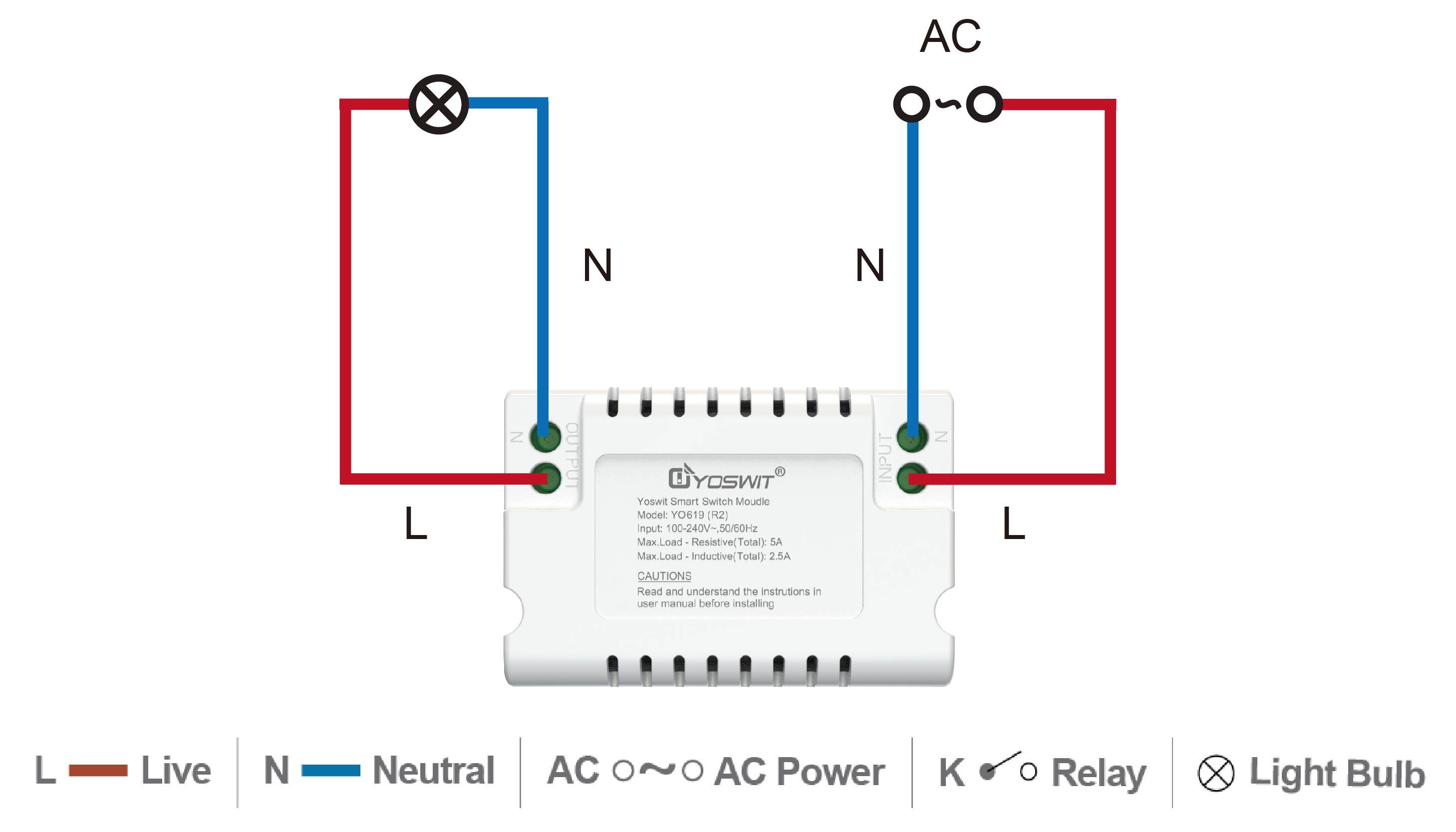

Connect the wires to the switch case. Make sure that the wires are secure.

warning

Warning

To reduce risk of electrical shock, unit shall be properly grounded in accordance with local regulations or codes. Failure to connect the ground wire will result in an unsafe installation that could lead to personal injury.

warning

3

Turn on the circuit breaker and connect to the power. Test your switch by tapping 2 to 3 times, or turn on/off the lights through our app. Your lights will turn on/off.

86_1g_step1

Installation complete.

Download the Yoswit App to your smart device and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

installation_complete
